Flexible Large Capacity Non-Electric Drive Expandable Steel Gravity Roller Conveyor

Description

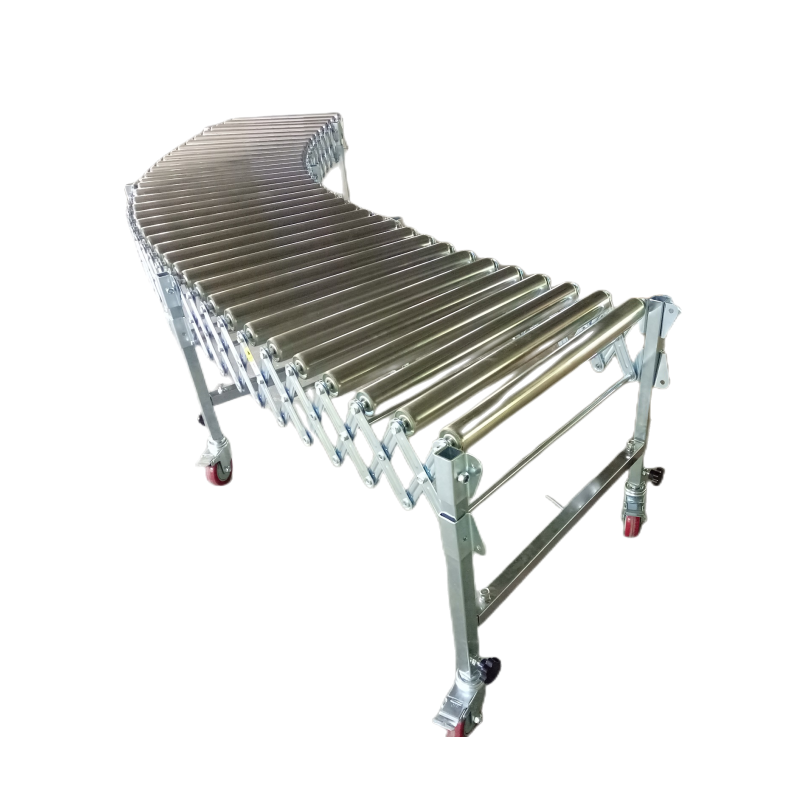

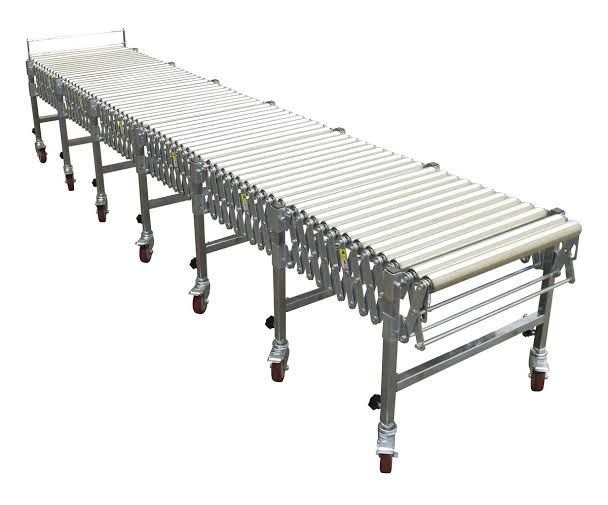

Flexible gravity roller conveyor is a conveyor without power. Movable, retractable, height adjustable. It is widely used for unloading carton packages or other flat bottomed articles.

Self Tracking - Cartons follow the twists and turns of the conveyor path without using engineered curves.

Adjustable Height - Simply to raise or lower the conveyor bed height.

Structural Steel Support - Channel steel spans the entire conveyor width for unequalled strength.

Casters with brakes - 4'' or 5" swivel casters roll easily. Caster brakes lock both wheel and swivel simultaneously while the conveyor is in use.

Motivation type - Without power

Features

Material: Carbon steel/stainless steel 304

Structure: Flexible Gravity Roller Conveyor

Load Capacity: 120kg/m

Height: 700-1000mm (Adjustable)

Roller diameter: 50mm

Effective Width: 500mm/600mm/800mm/1000mm
