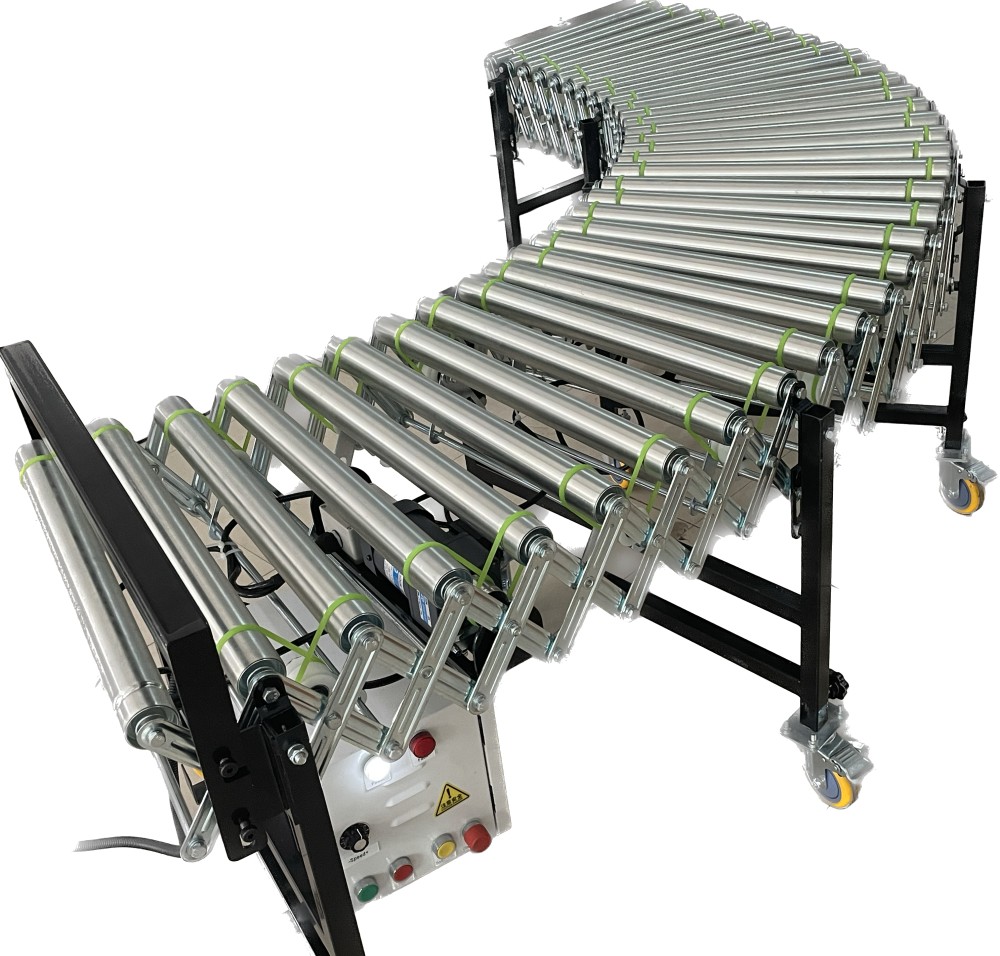

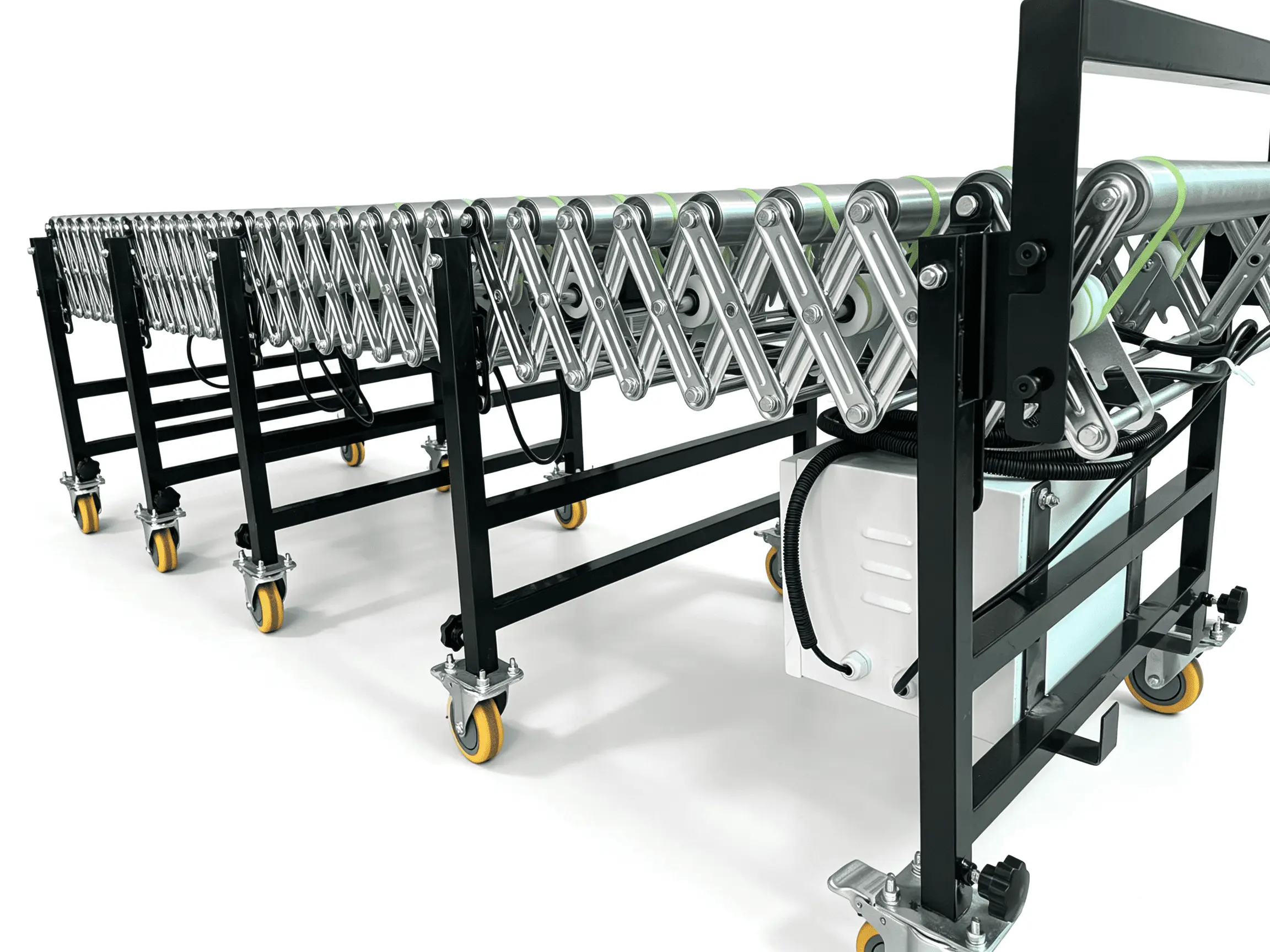

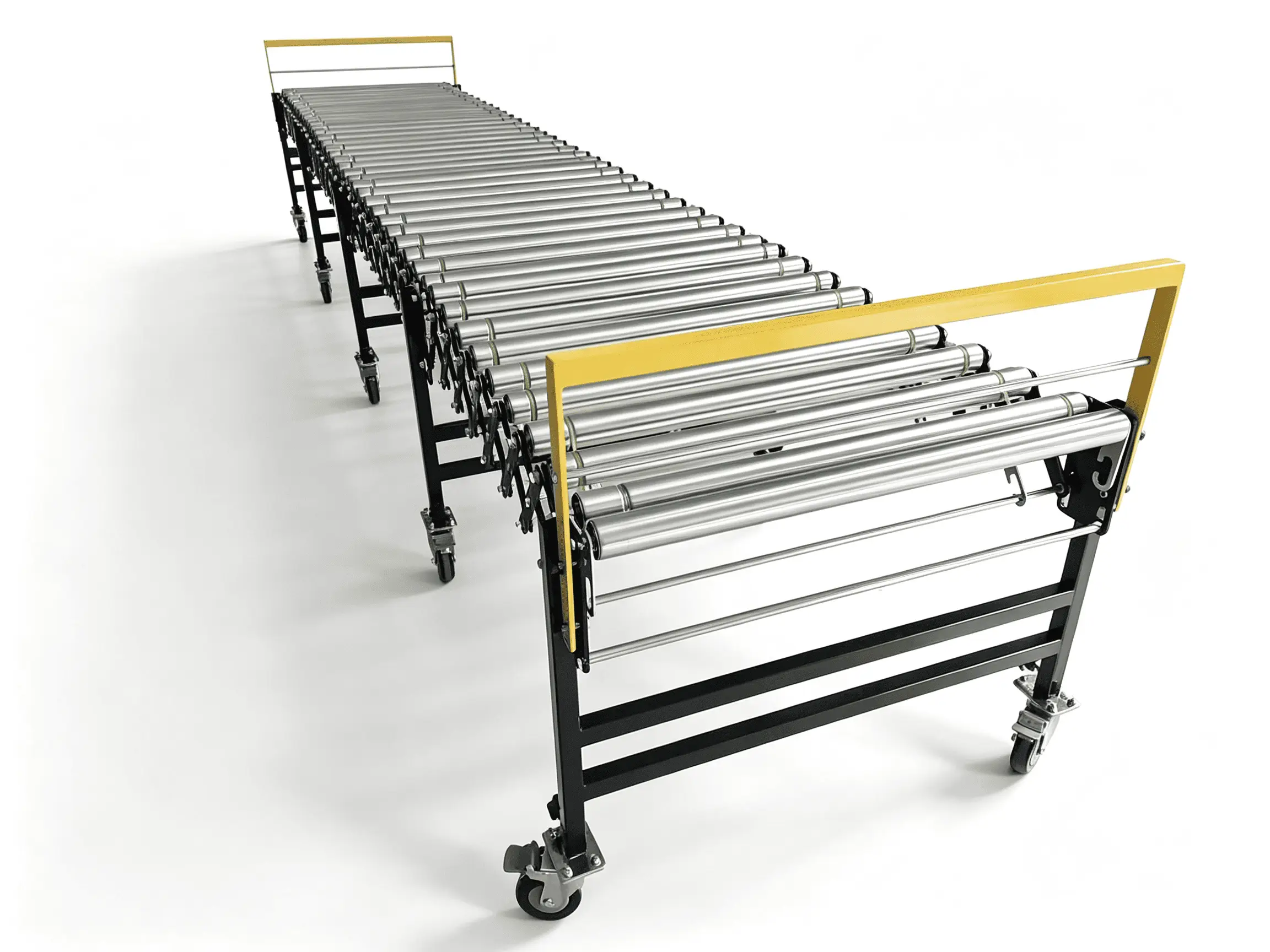

Automatic Flexible Motorized Roller Conveyor System for Cartons Transportation Loading Unloading
Description
The roller conveyor has a simple structure, high reliability, and convenient use and maintenance. The roller conveyor is suitable for the conveyance of articles with a flat bottom, which is mainly composed of a driving drum, a frame, a bracket, a driving part and the like. It has the characteristics of large transport volume, high speed, light operation, and the ability to realize the transmission of multiple lines at the same time.
Self Tracking - Cartons follow the twists and turns of the conveyor path without using engineered curves.
Adjustable Height - Simply to raise or lower the conveyor bed height.
Structural Steel Support - Channel steel spans the entire conveyor width for unequalled strength.
Casters with brakes - 4'' or 5" swivel casters roll easily. Caster brakes lock both wheel and swivel simultaneously while the conveyor is in use.
Motivation type - With power
Features
Material: Carbon steel/stainless steel 304
Name: Motorized Flexible Roller Conveyor
Load Capacity: O-belt type 50kg/m; V-belt type 80kg/m
Height: 700-1000mm (Adjustable)
Roller diameter: 50mm
Effective Width: 500mm/600mm/800mm/1000mm
