Gravity Based Roller Conveyor Loading/Unloading Systems for Containers Trucks and Vans Conveyor
Description

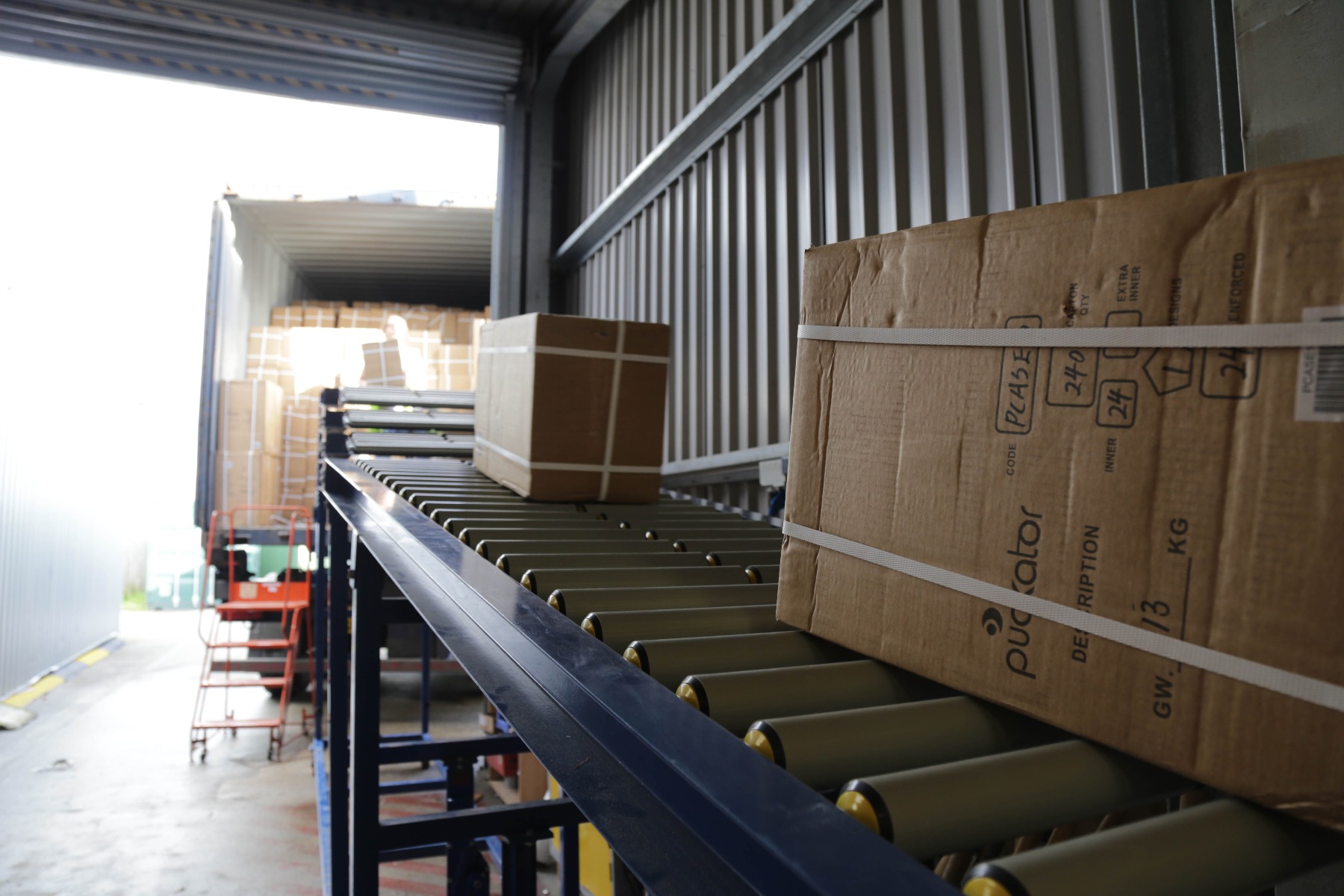

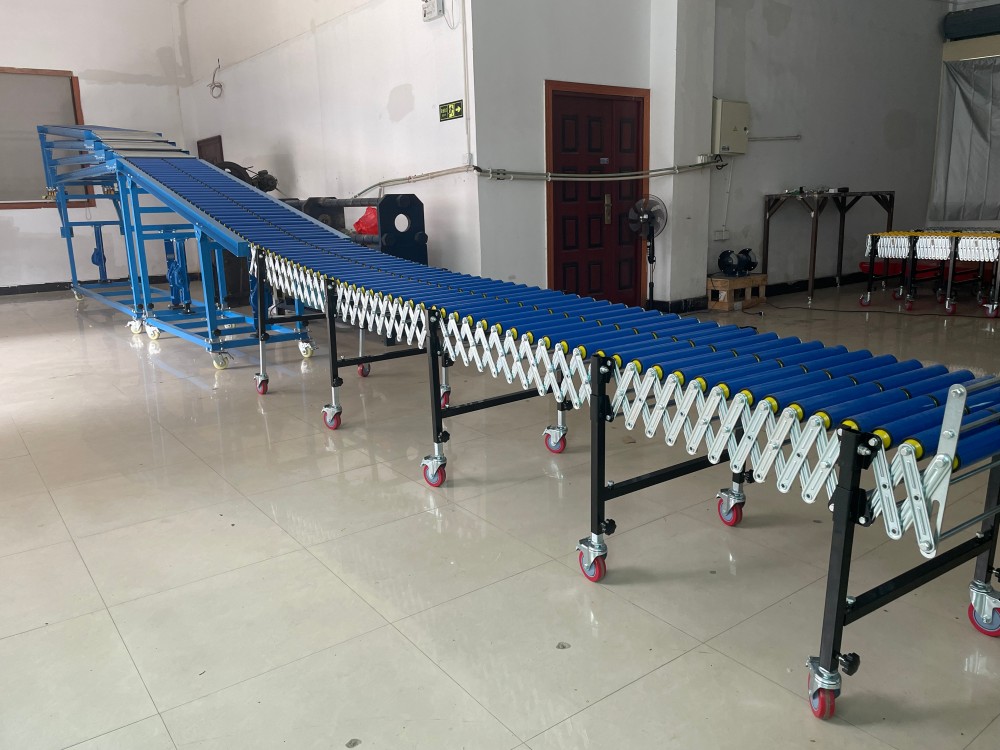

Telescopic conveyor has been developed as a safe, cost-effective solution for quickly unloading shipping containers or trailers where no level loading dock is available. The telescopic conveyor will extend up to 10m inside the shipping container or trailer and will convey cartons under gravity to an offload point at ground level. The High-Rise Telescopic Conveyor can be further extended outside the shipping container by attaching a flexible conveyor extending conveyor.
* High impact, low inertia, 50mm diameter PVC rollers which mounted in fully welded mild steel channel frames powder coated if you needed.
* Conveyor mounted on a heavy-duty box section chassis and fitted with lockable wheeled castors.
* Supplied with a 3m extension track to conveyor product to an offload point.
* Skid plates are also available if required.
Features
Conveyor models: telescopic unloading roller conveyor
Dia. of roller: 50mm etc.
Width of working surface: customized(300-1000mm)
Length of conveyor: customized(usually from 4.2-13.5m)(folded & extended)
Load Capacity: 100kg/m
Roller material: Plastic, Zinc steel, Stainless steel
Roller pitch: 75, 100, 150
Warranty Period: 1 year
Key Word: meal delivery system
Features: Designed for unloading 20' and 40' containers from trucks.
